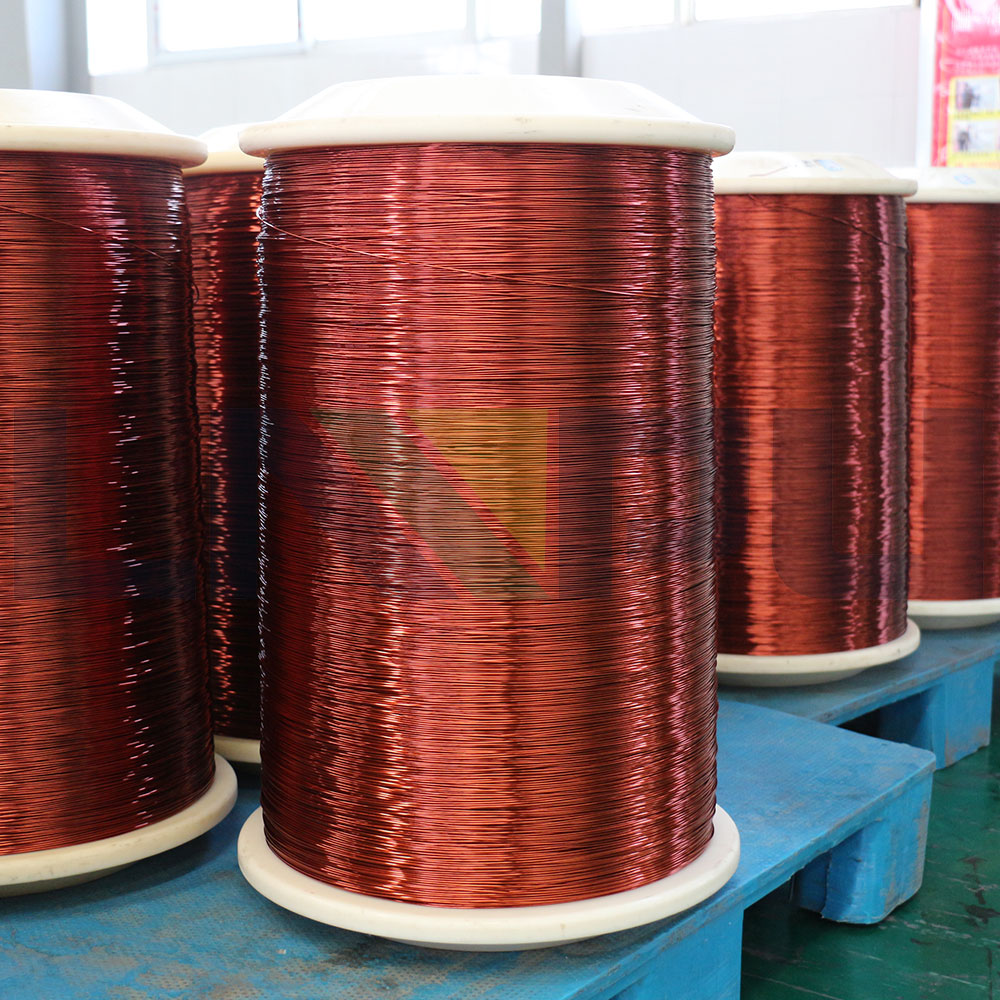

28 Gauge Enameled Copper Wire
- The bare wire diameter is approximately 0.321mm.
- The cross-sectional area is approximately 0.081mm².
- It uses high-purity oxygen-free copper wire as the core, with an outer layer coated with insulating enamel.
- The safe current-carrying capacity at room temperature is about 0.3-0.5A.
28 gauge enameled copper wire refers to 28awg enameled copper wire under the American Wire Gauge system. Its key specifications are as follows:
Due to its small wire diameter and low current-carrying capacity, it is mainly used for winding micro inductors, small transformers, micro motors, and precision sensors.
Why choose 28 Gauge Enameled Copper Wire?
The logic for choosing 28 gauge enameled copper wire is straightforward, with the core principle being “equipment requirements determine specifications.” Industry practice is to complete equipment design first, then procure matching wires; rather than procuring wires first and then designing equipment to fit the wires in reverse. If your equipment is of a small, precision type, it may require fine-gauge wires like 28 gauge enameled copper wire. As for the specific choice between AWG26, AWG27, AWG28, or AWG29, it ultimately depends on the actual conditions of the equipment.
Application Analysis of 28 Gauge Enameled Copper Wire
AWG28 enameled copper wire has a wide range of application scenarios, so the compatible insulating enamels are also quite numerous.
| Application Type | Insulating Enamel Type | Temperature Resistance Class | AWG Compatibility Range |
| High-frequency coils / Communication equipment | Polytetrafluoroethylene (PTFE) | 260℃ | 24-34 AWG |
| Micro motors / Household appliance auxiliary equipment | Polyurethane (PU) | 130℃ | 24-36 AWG |
| Industrial servo motors / New energy auxiliary systems | Polyesterimide (EI) | 180℃ | 16-30 AWG |
| High-temperature environment equipment / Nuclear control circuits | Polyamide-imide (PAI) | 220℃ | 16-32 AWG |
| Household appliance transformers / General electronic equipment | Polyester (PE) | 155℃ | 18-32 AWG |
| Ultra-high temperature / Extreme environment equipment | Polyimide (PI) | 260℃ | 20-36 AWG |
| High-frequency medical devices / Precision instruments | Polytetrafluoroethylene (PTFE) | 260℃ | 24-34 AWG |
| Smart wearable devices / Flexible electronics | Polyurethane (PU) | 130℃ | 24-36 AWG |
LP Industry’s Main Specifications for 28 Gauge Enameled Copper Wire
| Name | 28Gauge Enameled Copper Wire |
| Conductor | Copper |
| Dimension | 0.321 mm |
| Thermal Class | Class 130, Class 155, Class 180,Class 220，Class 260 |
| Standard | IEC,NEMA,GB,JIS |
| Certificate | UL |
| Packing | PT-4-PT-200 or ply-wood-spool |
Why Choose Us?
1.We use high-quality raw materials: high-purity conductive metals + high-quality insulating varnish = high-quality Enameled Wires.
2.For each batch of products, we conduct sampling inspections. We perform tests including structural dimension testing, mechanical property testing, breakdown voltage testing, and direct solderability testing, and ensure the test results comply with the standards of IEC and GB .
3.Our products have obtained certifications such as UL, CE, REACH , and RoHS , so you can purchase with complete confidence.
4.Our team has over 10 years of export experience, enabling us to deliver the goods to you as soon as possible without delaying your production.
Contact us to obtain the quotation for 28 Gauge Enameled Copper Wire
